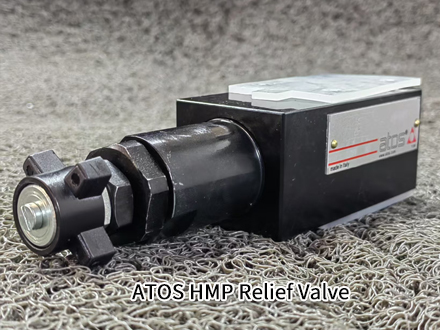

ATOS HMP-011/210/V Relief Valve
ATOS HMP-011/210/V High-Performance Direct-Acting Relief Valve for sale at SHDNK incorporates advanced hydraulic control technology and is specifically engineered for medium- to high-pressure hydraulic systems, delivering precise pressure regulation, rapid dynamic response, and superior stability.
Operating Principle
When the system pressure is below the set value, the regulating spring force maintains the spool in the closed position. Upon reaching the set pressure, the hydraulic force acting on the spool overcomes the spring preload, causing the spool to lift. Excess fluid is then diverted through the relief port back to the reservoir, thereby limiting further pressure rise. Pressure adjustment is accomplished by rotating the adjusting screw to modify the spring pre-compression.
Applications
Injection molding machines – Pressure control systems
Machine tool hydraulics – Overload protection
Construction machinery – Hydraulic circuit safety valves
Metallurgical equipment – Pressure regulation units
Marine deck machinery – Hydraulic power systems
Test benches – Constant pressure control
