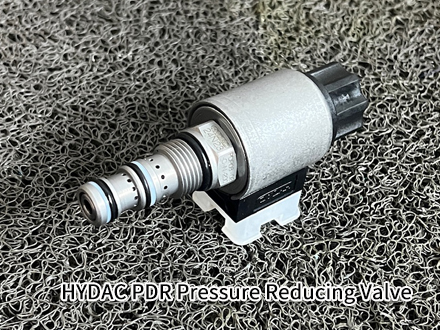

HYDAC PDR08-01-C-N-110-0
Quick Quote：13817145531
*已有【】人聯系Detail
The proportional pressure reducing valve of HYDAC PDR08-01-C-N-110-0 is a direct-acting 3-way spool-type valve. Its function HYDAC is to maintain a constant pressure at the consumer. When de-energized, pump port 2 is closed and consumer port 1 is connected to tank port 3. When energized, a force proportional to the control current acts on the valve piston and thereby defines the regulated pressure at consumer port 1.
If the pressure at port 1 rises above the set pressure due to a reaction of the consumer, pressure protection is provided on the outlet side. For this purpose, port 1 is relieved to tank port 3 and the pressure is thus limited. A pressure at port 3 is added to the pressure preset by the control current.
3-Way Proportional
Pressure Reducing Valve spool type, direct-acting
UNF Cartridge – 350 bar
PDR08-01
FEATURES
Excellent dynamic performance
Wide variety of connectors available
Excellent stability throughout the entire flow range
Coil seals protect the solenoid system
Exposed surfaces zinc-nickel plated for increased corrosion protection (1000 h Salt spray test)
